该系列产品包括了ISO2858规定的全部40个型号，通过切割叶轮和变速可获得267种性能，能适应各行各业的供水需要。严格按照ISO2858，意味着合理的特性曲线。颜山牌IS系列单级泵与其它单位生产的IS单级泵区别是工作压力1.6MPa，泵体泵盖静压力试验为2.4MPa。

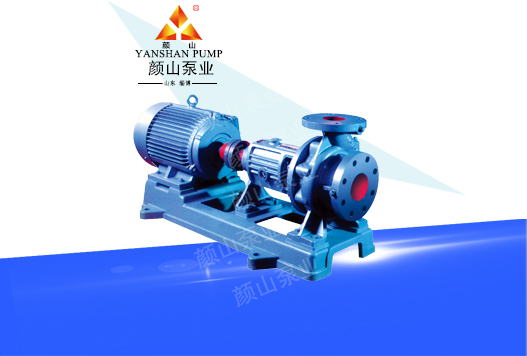

本系列泵是单级单吸悬臂式离心泵，供汲送清水及物理化学性质类似于水不含固体颗粒的液体之用。IS型泵介质温度适用于80℃以下;ISR型泵适用于输送130℃以下热水;ISY型泵用于输送汽油，柴油等轻油。
具体型号参数请点击下方链接下载
- 工作原理
- 性能参数
概述：
该系列产品包括了ISO2858规定的全部40个型号，通过切割叶轮和变速可获得267种性能，能适应各行各业的供水需要。严格按照ISO2858，意味着合理的特性曲线。颜山牌IS系列单级泵与其它单位生产的IS单级泵区别是工作压力1.6MPa，泵体泵盖静压力试验为2.4MPa。
本系列泵是单级单吸悬臂式离心泵，供汲送清水及物理化学性质类似于水不含固体颗粒的液体之用。IS型泵介质温度适用于80℃以下;ISR型泵适用于输送130℃以下热水;ISY型泵用于输送汽油，柴油等轻油。
性能参数范围：
流量：6.3~400 m3/h
扬程：5~125 m
必需汽蚀余量：2~5m
泵允许进口压力≤0.6Mpa。
泵的型号意义：
如： IS(R)125-80-160A(J)-S1
ISY125-80-160Z
IS— 符合国家标准的单级离心泵
ISY—单级离心式输油泵
ISR—单级离心式热油泵
125—吸入口直径(mm)
80—排出口直径(mm)
160—叶轮的名义直径
O—叶轮原型
A—叶轮外径第一次切割
B—叶轮外径第二次切割
C—叶轮外径第三次切割
Z—增大叶轮外径
(J)—设计转速为2900r/min的泵降速至1450r/min运转
S1—内装型机械密封(装填料密封的不注)
产品类别：IS、ISR、ISY系列单级泵
|
型号 |
叶轮 直径 |
流量 Q （m3/h） |
扬程 H （m） |
电机功率 N （kW） |
效率 η （%） |
汽蚀余量NPSHr（m） |
|
流量 Q （m3/h） |
扬程 H （m） |
电机功率 N （kW） |
效率 η （%） |
汽蚀余量NPSHr（m） |
|
转速n=2980r/min |
转速n=1490r/min |
|||||||||||
|
50-32-125 |
O |
7.5 12.5 15.0 |
22.0 20.0 18.5 |
2.2 |
47 60 60 |
2.0 2.0 2.5 |
3.8 6.3 7.5 |
5.4 5.0 4.6 |
0.55 |
43 54 55 |
2.0 2.0 2.5 |
|
|
A |
7.2 11.9 14.3 |
20.0 18.2 16.8 |
2.2 |
46 58 58 |
2.0 2.0 2.25 |
3.6 6.0 7.2 |
4.9 4.6 4.2 |
0.55 |
42 52 53 |
2.0 2.0 2.25 |
||
|
B |
6.7 11.2 13.4 |
17.5 15.9 14.7 |
1.5 |
45 56 56 |
2.0 2.0 2.05 |
3.4 5.6 6.7 |
4.3 4.0 3.7 |
0.55 |
41 50 51 |
2.0 2.0 2.05 |
||
|
C |
6.2 10.4 12.5 |
15.2 13.8 12.8 |
1.1 |
44 54 54 |
2.0 2.0 2.0 |
3.1 5.2 6.2 |
3.7 3.5 3.2 |
0.55 |
40 48 49 |
2.0 2.0 2.0 |
||
|
50-32-160 |
O |
7.5 12.5 15.0 |
34.3 32 29.6 |
3 |
44 54 56 |
2.0 2.0 2.5 |
3.8 6.3 7.5 |
8.5 8.0 7.5 |
0.55 |
35 48 49 |
2.0 2.0 2.5 |
|
|
A |
6.8 11.4 13.7 |
28.4 26.6 24.6 |
3 |
41.5 52 53 |
2.0 2.0 2.16 |
3.4 5.7 6.8 |
7.1 6.7 6.2 |
0.55 |
34 45.5 46 |
2.0 2.0 2.16 |
||
|
B |
6.1 10.1 12.2 |
22.5 21.0 19.4 |
2.2 |
39 50 51 |
2.0 2.0 2.0 |
3.0 5.1 6.1 |
5.6 5.3 4.9 |
0.55 |
32 42 42.5 |
2.0 2.0 2.0 |
||
|
C |
5.4 9.0 10.8 |
17.9 16.7 15.4 |
1.5 |
36 45 45.5 |
2.0 2.0 2.0 |
2.7 4.6 5.4 |
4.4 4.2 3.9 |
0.55 |
30 38 38.5 |
2.0 2.0 2.0 |
||
|
50-32-200 |
O |
7.5 12.5 15.0 |
52.5 50.0 48.0 |
5.5 |
38 48 51 |
2.0 2.0 2.5 |
3.8 6.3 7.5 |
13.1 12.5 12 |
0.75 |
33 42 44 |
2.0 2.0 2.5 |
|
|
A |
7.3 12.1 14.6 |
49.4 47.0 45.1 |
5.5 |
37.5 47 50 |
2.0 2.0 2.3 |
3.6 6.1 7.3 |
12.3 11.8 11.3 |
0.75 |
32.5 41.5 43.2 |
2.0 2.0 2.3 |
||
|
B |
7.0 11.7 14.0 |
45.3 43.2 41.5 |
4 |
37 46.2 49.2 |
2.0 2.0 2.15 |
3.5 5.9 7.0 |
11.3 10.8 10.4 |
2.2 |
47 60 60 |
2.0 2.0 2.5 |
||
|
C |
6.5 10.9 13.0 |
39.6 37.7 36.2 |
4 |
36 45.2 48.2 |
2.0 2.0 2.0 |
3.3 5.5 6.5 |
9.9 9.4 9.1 |
0.55 |
31 39.5 41.2 |
2.0 2.0 2.0 |
||
|
50-32-250 |
O |
7.5 12.5 15.0 |
82.0 80.0 78.5 |
11 |
28.5 38 41 |
2.0 2.0 2.25 |
3.8 6.3 7.5 |
20.5 20.0 19.5 |
1.5 |
23 32 35 |
2.0 2.0 2.5 |
|
|
A |
7.0 11.6 13.9 |
70.6 68.9 67.6 |
11 |
28 37.5 40 |
2.0 2.0 2.25 |
3.5 5.9 7.0 |
17.7 17.2 16.8 |
1.5 |
22.1 31.2 34.2 |
2.0 2.0 2.25 |
||
|
B |
6.5 10.8 13.0 |
61.2 59.7 58.6 |
7.5 |
27.5 36.3 39 |
2.0 2.0 2.05 |
3.2 5.4 6.5 |
15.3 14.9 14.6 |
1.5 |
21.5 30.5 33.5 |
2.0 2.0 2.05 |
||
|
C |
6.0 10.0 12.0 |
52.5 51.2 50.2 |
5.5 |
27 35 37.5 |
2.0 2.0 2.0 |
3.0 5.0 6.0 |
13.1 12.8 12.5 |
1.1 |
21 29.5 32.5 |
2.0 2.0 2.0 |
||
|
60-50-125 |
O |
15.0 25.0 30.0 |
21.8 20.0 18.5 |
3 |
58 69 68 |
2.0 2.5 3.0 |
7.5 12.5 15 |
5.4 5.0 4.7 |
0.55 |
53 64 65 |
2.0 2.0 2.5 |
|
|
A |
14.1 23.5 28.2 |
19.2 17.6 16.3 |
3 |
55 67 66 |
2.0 2.4 2.8 |
7.0 11.7 14.1 |
4.7 4.4 4.1 |
0.55 |
50.5 61.5 62 |
2.0 2.0 2.3 |
||
|
B |
13.2 21.9 26.3 |
16.8 15.2 14.2 |
2.2 |
50.5 62 61 |
2.0 2.3 2.6 |
6.6 11.0 13.2 |
4.1 3.8 3.6 |
0.55 |
46.5 57 57.5 |
2.0 2.0 2.15 |
||
|
C |
12.0 20.1 24.1 |
22.5 20.6 19.3 |
3 |
46.8 55 55 |
2.0 2.0 2.0 |
6.0 10.0 12.0 |
5.7 5.2 4.6 |
0.55 |
43 52 52 |
2.0 2.0 2.0 |
||
|
60-50-160 |
O |
15.0 25.0 30.0 |
35.0 32.0 30.0 |
5.5 |
54 65 66 |
2.0 2.0 2.5 |
7.5 12.5 15 |
8.8 8.0 7.2 |
0.75 |
50 60 60 |
2.0 2.0 2.5 |
|
|
A |
14.1 23.5 28.2 |
30.8 28.2 26.4 |
4 |
52.5 63 64 |
2.0 2.0 2.25 |
7.0 11.7 14.1 |
7.8 7.0 6.3 |
0.75 |
47 58 58 |
2.0 2.0 2.25 |
||
|
B |
13.0 21.6 25.9 |
26.1 23.9 22.4 |
4 |
49.5 58 49 |
2.0 2.0 2.05 |
6.5 10.8 13.0 |
6.6 6.0 5.4 |
0.55 |
45.5 55 55 |
2.0 2.0 2.05 |
||
|
60-50-160 |
C |
12.0 20.1 24.1 |
22.5 20.6 19.3 |
3 |
46.8 55 55 |
2.0 2.0 2.0 |
|
6.0 10.0 12.0 |
5.7 5.2 4.6 |
0.55 |
43 52 52 |
2.0 2.0 2.0 |
|
65-40-200 |
O |
15.0 25.0 30.0 |
53.0 50.0 47.0 |
7.5 |
49 60 61 |
2.0 2.0 2.5 |
7.5 12.5 15 |
13.2 12.5 11.8 |
1.1 |
43 55 57 |
2.0 2.0 2.5 |
|
|
A |
14.3 23.8 28.5 |
47.8 45.1 42.4 |
7.5 |
48.7 59.5 60.5 |
2.0 2.0 2.3 |
7.1 11.9 14.3 |
11.9 11.3 10.7 |
1.1 |
43 55 57 |
2.0 2.0 2.3 |
||
|
B |
13.5 22.5 27.0 |
42.9 40.5 38.1 |
5.5 |
48.3 59 60 |
2.0 2.0 2.1 |
6.8 11.3 13.5 |
10.7 10.1 9.6 |
1.1 |
43 54 57 |
2.0 2.0 2.1 |
||
|
C |
12.8 21.3 25.5 |
38.3 36.1 34.0 |
5.5 |
48 57.5 59 |
2.0 2.0 2.0 |
6.4 10.6 12.8 |
9.5 9.0 8.5 |
0.75 |
43 54 57 |
2.0 2.0 2.0 |
||
|
65-40-250 |
O |
15.0 25.0 30.0 |
82 80.0 78.0 |
15 |
37 50 53 |
2.0 2.0 2.5 |
7.5 12.5 15 |
21 20 19.4 |
2.2 |
35 46 48 |
2.0 2.0 2.5 |
|
|
A |
14.1 23.4 28.1 |
72.0 70.2 68.5 |
15 |
36.5 49 52.4 |
2.0 2.0 2.26 |
7.0 11.7 14.1 |
18.4 17.6 17.0 |
2.2 |
35 44.8 47 |
2.0 2.0 2.26 |
||
|
B |
13.1 21.9 26.2 |
62.7 61.1 59.6 |
11 |
36 47.6 51 |
2.0 2.0 2.07 |
6.6 10.9 13.1 |
16.0 15.3 14.8 |
1.5 |
34.8 43.8 46.2 |
2.0 2.0 2.07 |
||
|
C |
12.3 20.5 24.6 |
55.0 53.7 52.3 |
11 |
35.5 46.3 49.7 |
2.0 2.0 2.0 |
6.1 10.2 12.3 |
14.1 13.4 13.0 |
1.5 |
34.5 43 45 |
2.0 2.0 2.0 |
||
|
65-40-315 |
O |
15 25 30 |
127 125 123 |
30 |
28 50 44 |
2.5 2.5 3.0 |
7.5 12.5 15 |
32.3 32.0 31.7 |
4 |
25 37 41 |
2.5 2.5 3.0 |
|
|
A |
14 23.3 28.0 |
111 109 107 |
22 |
28 39.5 43.5 |
2.5 2.5 2.75 |
7.0 11.7 14.0 |
28.1 27.9 27.6 |
4 |
25 36.6 40.8 |
2.5 2.5 2.75 |
||
|
B |
13.1 21.9 26.3 |
97.5 96.0 94.4 |
18.5 |
28 39 43 |
2.5 2.5 2.56 |
6.6 11.0 13.1 |
24.8 24.6 24.3 |
3 |
25 36.3 40.6 |
2.5 2.5 2.56 |
||
|
C |
12.1 20.2 24.3 |
83.2 81.9 80.6 |
15 |
28 38.5 42.5 |
2.5 2.5 2.5 |
6.1 10.1 12.1 |
21.2 21.0 20.8 |
3 |
25 36 40.4 |
2.5 2.5 2.5 |
||
|
80-65-125 |
O |
30 50 60 |
22.5 20 18 |
5.5 |
64 75 74 |
3.0 3.0 3.0 |
15 25 30 |
5.6 5.0 4.5 |
0.75 |
55 71 72 |
2.5 2.5 3.0 |
|
|
A |
28.7 47.9 57.4 |
20.6 19.3 16.5 |
5.5 |
63 73 72.5 |
3.0 3.0 3.3 |
14.4 23.9 28.7 |
5.1 4.6 4.1 |
0.75 |
54.5 70 71 |
2.5 2.5 2.8 |
||
|
B |
26.1 43.6 52.3 |
17.1 15.2 13.7 |
4 |
60.5 69.5 68.5 |
3.0 3.0 3.1 |
13.1 21.8 26.1 |
4.3 3.8 3.4 |
0.55 |
53 66 67 |
2.5 2.5 2.55 |
||
|
C |
23.1 38.6 46.3 |
13.4 11.9 10.7 |
3 |
58 65.5 64.5 |
3.0 3.0 3.0 |
11.6 19.3 23.1 |
3.3 3.0 2.7 |
0.55 |
51 62 63 |
2.5 2.5 2.5 |
||
|
80-65-160 |
O |
30 50 60 |
36 32 29 |
7.5 |
61 73 72 |
2.5 2.5 3.0 |
15 25 30 |
8 9 7.2 |
1.5 |
55 69 68 |
2.5 2.5 3.0 |
|
|
A |
28.2 46.9 56.3 |
31.7 28.2 25.5 |
7.5 |
60 71 70 |
2.5 2.5 2.8 |
14.1 23.5 28.2 |
739 7.0 6.3 |
1.1 |
53.5 66.5 65.5 |
2.5 2.5 2.8 |
||
|
B |
25.9 43.2 51.9 |
26.9 23.9 21.7 |
5.5 |
59 67 66 |
2.5 2.5 2.6 |
13.0 21.6 25.9 |
6.7 6.0 5.4 |
1.1 |
51 63 62 |
2.5 2.5 2.6 |
||
|
C |
24.1 40.1 48.2 |
23.2 20.6 18.7 |
5.5 |
57 64 63 |
2.5 2.5 2.5 |
12.0 20.1 24.1 |
5.8 5.2 4.6 |
0.75 |
48 60 59 |
2.5 2.5
|
||
|
80-50-200 |
O |
30 50 60 |
53 50 47 |
15 |
55 69 71 |
2.5 2.5 3.0 |
15 25 30 |
13.2 12.5 11.8 |
2.2 |
51 65 67 |
2.5 2.5 3.0 |
|
|
A |
28.0 46.9 55.9 |
46.0 43.4 40.8 |
11 |
54.5 67 69.5 |
2.5 2.5 2.7 |
14.0 23.3 27.9 |
11.5 10.9 10.2 |
1.5 |
50.6 63 65 |
2.5 2.5 2.7 |
||
|
B |
25.6 42.7 51.2 |
38.6 36.4 34.2 |
11 |
53.5 66 68.5 |
2.5 2.5 2.53 |
12.8 21.3 25.6 |
9.6 9.1 8.6 |
1.5 |
49.5 61.5 62.5 |
2.5 2.5 2.53 |
||
|
C |
23.5 39.2 47.1 |
32.6 30.8 28.9 |
7.5 |
52.5 64.5 68 |
2.5 2.5 2.5 |
11.8 19.6 23.5 |
8.1 7.7 7.3 |
1.1 |
48 60.5 61.5 |
2.5 2.5 2.5 |
||
|
80-50-250 |
O |
30 50 60 |
84 80 75 |
22 |
52 63 64 |
2.5 2.5 3.0 |
|
15 25 30 |
21 20 18.8 |
3 |
49 60 61 |
2.5 2.5 3.0 |
|
A |
28.3 47.2 56.6 |
74.9 71.3 66.8 |
22 |
52.3 62.6 64 |
2.5 2.5 2.8 |
14.2 23.6 28.3 |
18.7 17.8 16.8 |
3 |
49 58.7 59.7 |
2.5 2.5 2.8 |
||
|
B |
26.6 44.4 53.3 |
66.2 63.1 59.1 |
18.5 |
52.7 62.2 64 |
2.5 2.5 2.6 |
13.3 22.2 26.6 |
16.6 15.8 14.8 |
2.2 |
49 58 59.5 |
2.5 2.5 2.6 |
||
|
C |
23.8 39.6 47.5 |
52.7 50.0 47.0 |
15 |
53 60.8 63.5 |
2.5 2.5 2.5 |
11.9 19.8 23.8 |
13.2 12.6 11.8 |
2.2 |
49 57 59 |
2.5 2.5 2.5 |
||
|
80-50-315 |
O |
30 50 60 |
128 125 123 |
37 |
41 54 57 |
2.5 2.5 3.0 |
15 25 30 |
32.5 32 31.5 |
5.5 |
39 52 56 |
2.5 2.5 3.0 |
|
|
A |
28.0 46.7 56.0 |
112 109 107 |
37 |
41 53.5 56.7 |
2.5 2.5 2.7 |
14.0 23.3 28.0 |
28.3 27.9 27.4 |
5.5 |
39 52 56 |
2.5 2.5 2.7 |
||
|
B |
26.3 43.8 52.6 |
98.3 96.0 94.4 |
30 |
41 53 56.3 |
2.5 2.5 2.63 |
13.1 21.9 26.3 |
25.0 24.6 24.2 |
4 |
39 51.4 55.6 |
2.5 2.5 2.63 |
||
|
C |
24.3 40.5 48.6 |
83.9 81.9 80.6 |
22 |
41 52.5 56 |
2.5 2.5 2.5 |
12.1 20.2 24.3 |
21.3 21.0 20.6 |
4 |
39 51.1 55.4 |
2.5 2.5 2.5 |
||
|
100-80-125 |
O |
60 100 120 |
24 20 16.5 |
11 |
67 78 74 |
4.0 4.5 5.0 |
30 50 60 |
6 5 4 |
1.5 |
64 75 71 |
2.5 2.5 3.0 |
|
|
A |
56.6 94.2 113 |
21.3 17.8 14.7 |
11 |
63.5 73 70 |
4.0 4.4 4.8 |
28.3 47.1 56.6 |
5.3 4.4 3.6 |
1.5 |
61 72 76 |
2.5 2.5 2.8 |
||
|
B |
53.5 89.2 107 |
19.1 15.9 13.1 |
7.5 |
60 70 65 |
4.0 4.3 4.65 |
26.8 44.6 53.5 |
4.8 4.0 3.2 |
1.1 |
57 66 64 |
2.5 2.5 2.6 |
||
|
C |
47.9 79.1 95.0 |
15.0 12.5 10.3 |
5.5 |
54.5 64 62.5 |
4.0 4.2 4.4 |
23.7 39.6 47.5 |
3.8 3.1 2.5 |
1.1 |
48 61 59 |
2.5 2.5 2.5 |
||
|
100-80-160 |
O |
60 100 120 |
36 32 28 |
15 |
70 78 75 |
3.5 4.0 5.0 |
30 50 60 |
9.2 8.0 6.8 |
2.2 |
67 75 71 |
2.0 2.5 3.5 |
|
|
A |
56.9 94.8 114 |
32.4 28.8 25.2 |
15 |
69.7 77.5 74.2 |
3.5 3.97 4.5 |
28.4 47.4 56.9 |
8.3 7.2 6.1 |
2.2 |
66.5 76 70 |
2.0 2.34 2.6 |
||
|
B |
53.4 89.0 107 |
28.5 25.4 22.2 |
11 |
69.3 76.6 73.8 |
3.5 3.77 4.1 |
26.7 44.5 53.4 |
7.3 6.3 5.4 |
1.5 |
66 73.3 69 |
2.0 2.25 2.9 |
||
|
C |
50.6 84.4 101 |
25.6 22.8 19.9 |
11 |
69 76 73.5 |
3.5 3.65 3.93 |
25.3 42.2 50.6 |
6.6 5.7 4.8 |
1.5 |
68.5 73 68.5 |
2.0 2.17 2.4 |
||
|
100-65-200 |
O |
60 100 120 |
54 50 47 |
22 |
65 76 77 |
3.0 3.6 4.8 |
30 50 60 |
13.5 12.5 11.8 |
4 |
63 73 74 |
2.0 2.0 2.5 |
|
|
A |
56.4 94.1 113 |
47.8 44.2 41.6 |
22 |
65 76.5 77 |
3.0 3.45 4.3 |
28.2 47.0 56.4 |
11.9 11.1 10.4 |
3 |
60 72.7 73.7 |
2.0 2.0 2.29 |
||
|
B |
53.5 89.1 107 |
38.3 35.4 33.3 |
15 |
65 73 75 |
3.0 3.25 3.6 |
25.3 42.1 50.5 |
9.6 8.9 8.4 |
2.2 |
60 72 73 |
2.0 2.0 2.0 |
||
|
C |
50.5 84.2 101 |
38.3 35.4 33.3 |
15 |
65 73 75 |
3.0 3.25 3.6 |
25.3 42.1 50.5 |
9.6 8.9 8.4 |
2.2 |
60 72 73 |
2.0 2.0 2.0 |
||
|
100-65-250 |
O |
60 100 120 |
87 80 74.5 |
37 |
61 72 73 |
3.5 3.8 4.8 |
30 50 60 |
21.3 20 19 |
5.5 |
55 68 70 |
2.0 2.0 2.5 |
|
|
A |
56.0 93.3 112 |
75.8 69.7 64.9 |
37 |
59.5 69.3 70.5 |
3.5 3.7 4.35 |
28.0 46.7 56.0 |
18.6 17.4 16.6 |
5.5 |
53 65.5 67.8 |
2.0 2.0 2.25 |
||
|
B |
52.2 87.1 104 |
65.9 60.6 56.5 |
30 |
56.5 66.1 67 |
3.5 3.6 4.0 |
26.1 43.5 52.2 |
16.1 15.2 14.4 |
4 |
51 62 64.6 |
2.0 2.0 2.05 |
||
|
C |
48.5 80.8 96.6 |
56.8 52.2 48.6 |
30 |
53 62.8 67 |
3.5 3.5 3.75 |
24.2 40.4 48.5 |
13.9 13.1 12.4 |
4 |
49 58.5 60.6 |
2.0 2.0 2.0 |
||
|
100-65-315 |
O |
60 100 120 |
133 125 118 |
75 |
55 60 67 |
3.5 3.6 4.2 |
30 50 60 |
34 32 30 |
11 |
51 63 64 |
2.0 2.0 2.5 |
|
|
100-65-315 |
A |
56 93.3 112 |
116 109 103 |
55 |
55 65.2 66 |
3.0 3.45 3.95 |
|
28 46.7 56 |
29.6 27.9 26.1 |
11 |
51 62.8 63.3 |
2.0 2.0 2.25 |
|
B |
52.6 87.6 105 |
102 96 90.6 |
45 |
55 64.5 65 |
3.0 3.32 3.70 |
26.3 43.8 52.6 |
26.1 24.6 23.0 |
7.5 |
51 62.7 62.2 |
2.0 2.0 2.10 |
||
|
C |
48.5 81.0 97.1 |
87.2 81.9 77.3 |
37 |
55 63 64 |
3.0 3.2 3.5 |
24.3 40.5 48.6 |
22.3 21.0 19.7 |
5.5 |
51 61.5 61.2 |
2.0 2.0 2.0 |
||
|
125-80-160 |
Z |
105 174 209 |
42.8 38 33.3 |
30 |
72 80 77 |
5.6 |
52.3 87.2 105 |
10.7 9.5 8.31 |
4 |
69 77 74 |
2.5 |
|
|
O |
96 160 192 |
36 32 28 |
22 |
72 80 77 |
5.6 |
48 80 96 |
9 8 7 |
3 |
69 77 74 |
2.5 |
||
|
A |
89.8 150 180 |
31.5 28 24.5 |
18.5 |
70 78 75 |
5.6 |
44.9 74.8 89.8 |
7.9 7 6.1 |
2.2 |
67 75 72 |
2.5 |
||
|
B |
83.1 139 166 |
27 24 21 |
15 |
68 76 73 |
5.6 |
41.6 69.3 83.1 |
6.8 6 5.3 |
2.2 |
65 73 70 |
2.2 |
||
|
125-80-200 |
Z |
105 175 210 |
66 60 55.2 |
45 |
66 80 78 |
5.6 |
52.6 87.6 105 |
16.5 15 13.8 |
5.5 |
63 77 75 |
2.5 |
|
|
O |
96 160 192 |
55 50 46 |
37 |
66 80 78 |
5.2 |
48 80 96 |
13.6 12.5 11.5 |
4 |
63 77 75 |
2.5 |
||
|
A |
90.1 150 180 |
48.4 44 40.5 |
30 |
65 79 77 |
5.2 |
45.0 75.1 90.1 |
12.1 11 10.1 |
4 |
462 76 74 |
2.5 |
||
|
B |
83.6 139 167 |
41.8 38 35.0 |
22 |
64 78 76 |
5.2 |
41.9 69.7 83.7 |
10.1 9.5 8.7 |
3 |
61 75 73 |
2.5 |
||
|
125-80-250 |
Z |
103 172 206 |
100 92 84 |
75 |
65 77 74 |
4.8 |
51.5 85.8 10.3 |
25 23 21.3 |
11 |
62 74 71 |
2.2 |
|
|
O |
96 160 192 |
87 80 73 |
55 |
65 77 74 |
4.8 |
48 80 96 |
21.8 20 18.3 |
7.5 |
62 74 71 |
2.2 |
||
|
A |
89.8 150 180 |
76.1 70 63.9 |
45 |
64 76 73 |
4.8 |
44.9 74.8 89.8 |
19.0 17.5 16.0 |
5.5 |
61 73 70 |
2.2 |
||
|
B |
83.1 139 166 |
65.3 60 54.8 |
37 |
63 75 72 |
4.8 |
41.6 69.3 83.1 |
16.3 15.0 13.7 |
5.5 |
60 72 69 |
2.2 |
||
|
125-80-315 |
Z |
100 167 200 |
145 136 129 |
110 |
58 73 73 |
4.5 |
49.5 82.5 99.0 |
35.6 34 31.9 |
15 |
55 70 70 |
2.1 |
|
|
O |
96 160 192 |
133 125 119 |
90 |
58 73 73 |
4.5 |
48 80 96 |
33.5 32 30 |
15 |
55 70 70 |
2.1 |
||
|
A |
91.7 153 183 |
121 114 109 |
90 |
57 72 72 |
4.5 |
45.3 75.5 90.6 |
29.8 28.5 26.7 |
11 |
54 69 69 |
2.1 |
||
|
B |
87.1 145 174 |
110 103 98.1 |
75 |
56 71 71 |
4.5 |
43.1 71.8 86.1 |
27.0 25.8 24.1 |
11 |
53 68 68 |
2.1 |
||
|
C |
82.4 137 165 |
97.9 92 87.6 |
75 |
55 70 70 |
4.5 |
40.7 67.8 81.4 |
24.1 23 21.6 |
7.5 |
52 67 67 |
2.1 |
||
|
125-100-200 |
O |
120 200 240 |
57.5 50 44.5 |
45 |
67 81 80 |
4.5 4.5 5.0 |
60 100 120 |
14.5 12.5 11.0 |
7.5 |
62 76 75 |
2.5 2.5 3.0 |
|
|
A |
111 185 222 |
49.3 42.9 38.2 |
37 |
64.5 78 77 |
4.5 4.5 4.7 |
55.6 92.6 111 |
12.4 10.7 9.4 |
5.5 |
61 73.5 73 |
2.5 2.5 2.75 |
||
|
B |
103 172 207 |
42.6 37.1 33.0 |
30 |
62.5 75 74 |
4.5 4.5 4.55 |
51.7 86.1 103 |
10.8 9.3 8.2 |
5.5 |
58 70 69 |
2.5 2.5 2.55 |
||
|
C |
94.4 157 189 |
35.6 31.0 27.9 |
30 |
60 71 70 |
4.5 4.5 4.5 |
47.2 78.7 94.4 |
9.0 7.7 6.8 |
4 |
55 66 66 |
2.5 2.5 2.5 |
||
|
125-100-250 |
O |
120 200 240 |
87 80 72 |
75 |
66 78 75 |
3.8 4.2 5.0 |
60 100 120 |
21.5 20 18.5 |
11 |
63 76 77 |
2.5 2.5 3.0 |
|
|
125-100-250 |
A |
112 187 224 |
75.8 69.7 62.7 |
75 |
66 78.2 73.5 |
3.8 4.08 4.6 |
56 93.3 112 |
18.7 17.4 16.1 |
11 |
63 76 77 |
2.5 2.5 2.7 |
|
|
B |
104 174 209 |
65.6 60.6 54.6 |
55 |
66 78 73 |
3.8 4.0 4.4 |
52.2 87.1 104 |
16.3 15.2 14.0 |
7.5 |
63 75.5 76.8 |
2.5 2.5 2.53 |
||
|
C |
96.9 162 194 |
56.8 52.2 47 |
45 |
66 77.8 73 |
3.8 3.9 4.15 |
48.5 80.8 96.9 |
14.0 13.1 12.1 |
5.5 |
63 75.2 76.5 |
2.5 2.5 2.5 |
||
|
125-100-315 |
O |
120 200 240 |
133 125 120 |
110 |
60 75 77 |
5.0 4.5 4.0 |
|
60 100 120 |
33.5 32 30.5 |
15 |
58 73 74 |
2.5 2.5 3.0 |
|
A |
112 187 225 |
116 110 105 |
110 |
59 73.3 75.1 |
4.9 4.7 4.4 |
56.2 93.7 112 |
2934 28.1 26.8 |
15 |
56 71.5 72.5 |
2.5 2.5 2.8 |
||
|
B |
104 174 209 |
100 94.8 91.0 |
90 |
58 70.8 73.1 |
4.3 4.5 4.0 |
56.2 93.7 112 |
29.4 28.1 26.8 |
15 |
56 71.5 72.5 |
2.5 2.5 2.8 |
||
|
C |
96.5 161 193 |
85.7 80.9 77.7 |
75 |
57 68.4 71.3 |
4.0 4.0 4.43 |
48.3 80.4 96.5 |
21.7 20.7 19.7 |
11 |
53 67 68 |
2.5 2.5 2.5 |
||
|
型号 |
叶轮 直径 |
流量 Q （m3/h） |
扬程 H （m） |
电机功率 N （kW） |
效率 η （%） |
汽蚀余量NPSHr（m） |
|
转速n=1490r/min |
||||||
|
125-80-400 |
O |
52.6 87.6 105 |
63.6 60 55.2 |
30 |
51 63 63 |
2.0 |
|
A |
48 80 96 |
53 50 46 |
22 |
51 63 63 |
2.0 |
|
|
B |
45.0 75.1 90.1 |
46.6 44 40.5 |
18.5 |
50 62 62 |
2.0 |
|
|
C |
41.9 69.7 83.7 |
40.3 38 35.0 |
15 |
49 61 61 |
2.0 |
|
|
125-100-400 |
O |
60 100 120 |
52 50 48.5 |
30 |
53 65 67 |
2.5 2.5 3.0 |
|
A |
56.4 93.9 113 |
45.9 44.1 42.8 |
22 |
53 65 66.8 |
2.5 2.5 2.75 |
|
|
B |
52.3 87.1 105 |
39.4 37.9 36.8 |
18.5 |
53 64.7 66.5 |
2.5 2.5 2.6 |
|
|
C |
48.6 81.0 97.2 |
34.1 32.8 31.8 |
15 |
53 64.4 66.2 |
2.5 2.5 2.5 |
|
|
150-125-250 |
O |
120 200 240 |
23.2 20 17.0 |
18.5 |
71 81 78 |
3.0 3.0 3.5 |
|
A |
112 187 224 |
20.2 17.4 14.8 |
15 |
68.5 77 75 |
3.0 3.0 3.2 |
|
|
B |
103 171 205 |
16.9 14.6 12.4 |
15 |
64.5 75 71 |
3.0 3.0 3.05 |
|
|
C |
95.4 159 191 |
14.7 12.6 10.7 |
11 |
61.5 71 68 |
3.0 3.0 3.0 |
|
|
150-125-315 |
O |
120 200 240 |
34 32 29 |
30 |
70 79 80 |
2.5 2.5 3.0 |
|
A |
112 186 224 |
29.6 27.8 25.2 |
22 |
69 78.7 79 |
2.5 2.5 2.7 |
|
|
B |
104 174 208 |
25.6 24.1 21.8 |
18.5 |
68 77.7 78 |
2.5 2.5 2.55 |
|
|
C |
96.4 161 193 |
21.7 20.6 18.7 |
15 |
77 76.7 77.2 |
2.5 2.5 2.5 |
|
|
150-125-400 |
O |
120 200 240 |
53 50 46 |
45 |
62 75 74 |
2.0 2.8 3.5 |
|
A |
112 186 224 |
46.1 43.5 40.0 |
45 |
62 74.5 73 |
2.0 2.65 3.2 |
|
|
B |
105 174 209 |
40.3 38.0 35.0 |
37 |
62 74 72.4 |
2.0 2.5 2.95 |
|
|
C |
96.5 161 193 |
34.3 32.3 29.7 |
30 |
62 72.8 71.5 |
2.0 2.35 2.7 |
|
|
200-150-250 |
O |
240 400 460 |
25 22 20 |
37 |
69 82.5 82 |
3.0 3.5 4.0 |
|
A |
223 371 427 |
21.5 18.9 17.2 |
30 |
67 80 79.5 |
3.0 3.4 3.7 |
|
|
B |
207 345 397 |
18.6 16.4 14.9 |
30 |
65.4 77.5 77 |
3.0 3.3 3.5 |
|
|
C |
190 317 365 |
15.7 13.8 12.6 |
22 |
64.4 74 73.5 |
3.0 3.2 3.35 |
|
|
200-150-315 |
O |
240 400 460 |
37 32 28.5 |
55 |
70 82 80 |
3.0 3.5 4.0 |
|
A |
219 366 420 |
30.9 26.7 23.8 |
45 |
68 76.2 75 |
3.0 3.35 3.6 |
|
|
B |
198 330 380 |
25.2 21.8 19.4 |
37 |
61.5 69.3 69 |
3.0 3.2 3.4 |
|
|
C |
182 303 348 |
21.2 18.3 16.3 |
30 |
58 64 42 |
3.0 3.1 3.25 |
|
|
200-150-400 |
O |
240 400 460 |
55 50 45 |
90 |
74 81 76 |
3.0 3.8 4.5 |
|
A |
224 373 429 |
47.7 43.4 39.1 |
75 |
73 79.8 73.5 |
3.0 3.6 4.1 |
|
|
B |
209 348 401 |
47.1 37.9 34.1 |
75 |
72 78.6 72 |
3.0 3.4 3.8 |
|
|
C |
194 324 373 |
36.1 32.8 29.5 |
55 |
71 77 70.5 |
3.0 3.25 3.6 |
|
|
250-200-315 |
O |
380 630 760 |
41 38 35 |
110 |
71 84.5 84 |
5.5 |
|
A |
380 630 760 |
35.5 32 29 |
90 |
71 84.5 84 |
5.5 |
|
|
B |
360 590 720 |
31.6 28.5 25.8 |
75 |
69.5 83 82.5 |
5.4 |
|
|
C |
340 560 670 |
27.7 25 22.6 |
75 |
68.5 82 81.5 |
5.3 |
|
|
250-200-400 |
O |
360 630 760 |
56.3 54.5 51.5 |
160 |
71 84.5 82.5 |
5.5 |
|
A |
380 630 760 |
52 50 46.7 |
132 |
71 84.5 82.5 |
5.5 |
|
|
B |
360 590 720 |
46.8 45 42 |
110 |
69.5 83 81 |
5.4 |
|
|
C |
340 560 680 |
41.6 40 37.4 |
110 |
68.5 82 80 |
5.3 |
|
|
300-250-315 |
O |
320 530 640 |
36.4 35 32.7 |
90 |
67.5 81 79 |
5.1 |
|
A |
600 1000 1200 |
43.8 37.5 34 |
160 |
72 86 86 |
7.5 |
|
|
B |
600 1000 1200 |
38 32 28 |
132 |
72 86 85 |
7.5 |
|
|
C |
570 940 1130 |
33.8 28.5 24.8 |
110 |
70.5 84 83.5 |
7.3 |
|
|
300-250-400 |
O |
530 880 1060 |
29.7 25 21.9 |
90 |
69.5 83 82.5 |
7.1 |
|
A |
600 1000 1200 |
66.5 65 62 |
250 |
73 86 84 |
7.5 |
|
|
B |
600 1000 1200 |
53.5 50 47.2 |
200 |
73 86 84 |
7.5 |
|
|
C |
570 950 1140 |
48 45 42.5 |
200 |
71 84 82 |
7.3 |
|
|
350-300-315 |
O |
540 890 1070 |
42.8 40 37.7 |
160 |
70.5 83.5 81 |
7.1 |
|
A |
960 1600 1920 |
38.4 32 26.5 |
200 |
77 85 82 |
11 |
|
|
B |
910 1510 1810 |
34.2 28.5 23.6 |
160 |
75 83 80 |
10.8 |
|
|
C |
850 1410 1700 |
30 25 20.5 |
132 |
74 81.5 79 |
10.5 |
|
|
350-300-400 |
O |
960 1600 1920 |
56.5 50 44 |
280 |
77 87 84 |
11 |
|
A |
910 1520 1820 |
50.8 45 39.5 |
250 |
75.5 85.5 82.5 |
10.8 |
|
|
B |
860 1430 1720 |
45.2 40 35.2 |
250 |
75 84.5 81.52 |
10.5 |
|
|
C |
800 1340 1610 |
39.5 35 30.8 |
200 |
74 83.5 80.5 |
10.2 |
|
